Ignition Coil Wire Harness Connectors 2 pack

GM LS/VORTEC IGNITION COIL WIRE HARNESS PAIR

Replace damaged, brittle, or worn ignition-coil wiring with this preassembled harness set. Designed for many Chevrolet, GMC, and Cadillac LS/Vortec applications, each harness connects one bank of four ignition coils to the engine wiring harness.

PRODUCT FEATURES

• Replacement ignition coil wiring harnesses for many GM LS and Vortec engines

• Designed for select 4.8L, 5.3L, 6.0L, 6.2L, and 8.1L applications

• Commonly used with LQ4, LQ9, LS2, LS3, LS7, and LSX engine configurations

• Compatible with many popular GM coil styles, including D510C, D581, D585, D513A, and D514A

• Common coil reference numbers include 12570616, 12558693, 10457730, 19005218, and 12573190

• Preassembled connectors provide a straightforward plug-in installation when matched to the correct application

• Protective corrugated wire loom helps shield the wiring from heat, abrasion, and engine-bay exposure

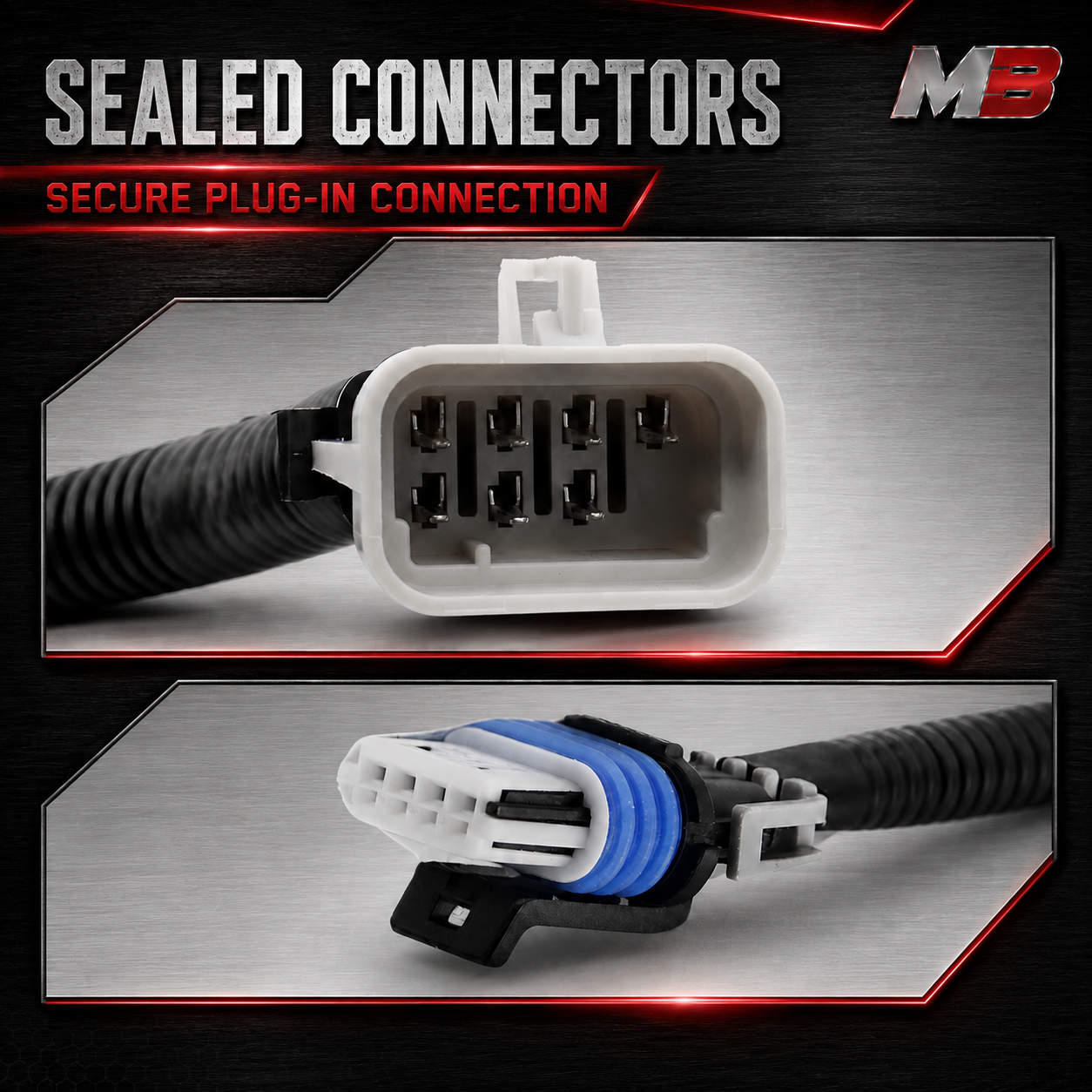

• Molded locking connectors and sealed-style coil connections provide a secure fit

• Complete two-piece set services both engine banks

PACKAGE INCLUDES

• 2 ignition coil wire harness assemblies

• Each harness includes four ignition coil connectors and one main harness connector

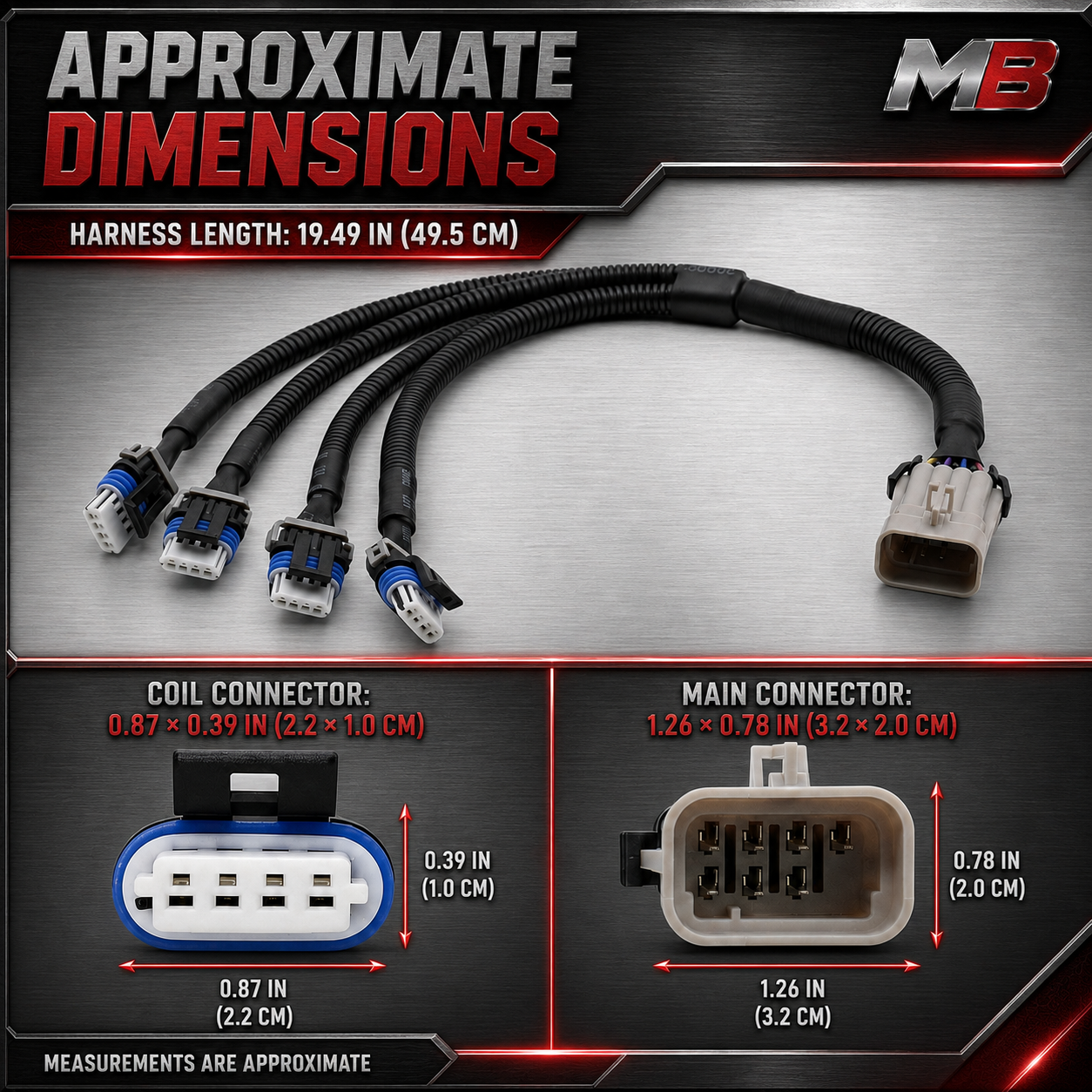

APPROXIMATE DIMENSIONS

• Harness length: 19.49 inches (49.5 cm)

• Coil connector face: 0.87 × 0.39 inches (2.2 × 1.0 cm)

• Main connector face: 1.26 × 0.78 inches (3.2 × 2.0 cm)

IMPORTANT FITMENT INFORMATION

Vehicle and engine size alone do not guarantee compatibility. Before ordering, compare the connector shape, pin arrangement, wire colors, harness layout, and ignition-coil style with your original parts. Different coil and harness designs may have been used within the same model year or engine family.
